Highly Integrated Localizable Wireless EMG Transponder

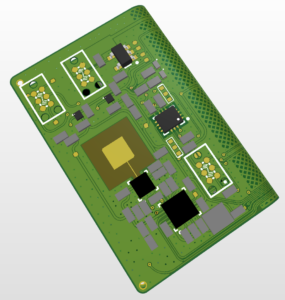

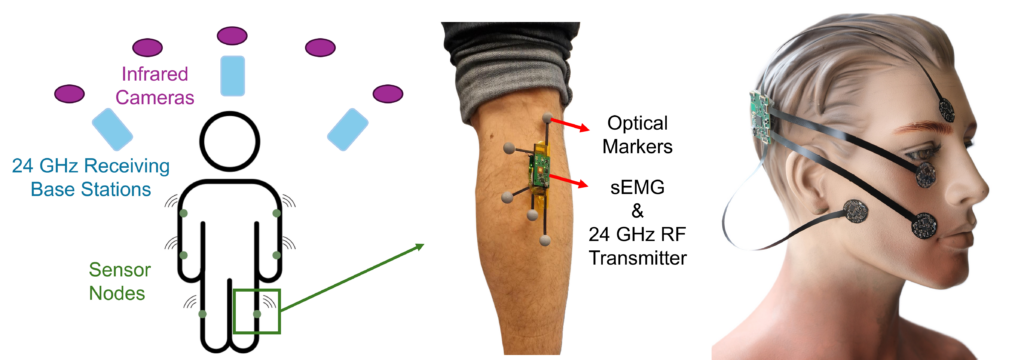

Sub-project A03 aims to provide information on a locatable small-size EMG sensor patch for extending classical gait analysis with unique information about the causality of gait alteration. The purpose of this technology is to support diagnosis and therapy for people with chronic diseases affecting the musculoskeletal system. During the project period, a prototype is built acting as a proof-of-concept at 24GHz (EmpkinS Beacon V2a) which is miniaturized afterward (EmpkinS Beacon V2b). This includes proper component selection for efficient placement and routing as well as for energy efficiency reasons. Due to the miniaturization a flexible substrate is chosen for Version V2b, so HF hardware design at 24GHz on that substrate is a challenging project task.

In the future, the project also mentions two additional planned versions of the sensor:

MultiEMG@commercial-61GHz and MultiEMG@MNT61GHz.

The project is being carried out by LTE and MNT in close cooperation with LHFT.



Contacts

Prof. Dr. Amelie Hagelauer

Principal Investigator

Prof. Dr.-Ing. Dr.-Ing. habil. Robert Weigel

Principal Investigator



Aditya Gupta, M.Sc

Doctoral Candidate

Samira Balbach

Associate Doctoral Candidate (TUM)

Christian Dorn, M. Sc

Associate Doctoral Candidate





Additional Information

  • Gupta A., Dietz M., Engelmann A., Hagelauer A.:
    Ultra-Low Power 60 GHz Class-C Frequency Tripler in 22-nm FDSOI CMOS Technology.
    15th IEEE Latin American Symposium on Circuits and Systems (Punta del Este, 2024). Proceedings 2024. DOI: 10.1109/LASCAS60203.2024.10506144
  • Brückner S., Weber J., Michler F., Shanin N., Schober R., Hagelauer A., Weigel R., Gaßner H., Winkler J., Eskofier B., Vossiek M.:
    A Wireless Joint Communication and Localization EMG-Sensing Concept for Movement Disorder Assessment.
    IEEE Journal of Electromagnetics, RF and Microwaves in Medicine and Biology (2023), S. 1-10. ISSN: 2469-7249. DOI: 10.1109/JERM.2023.3321974.
  • Michler F.:
    Fundamentals and System Design Challenges in Radar-Based Vital Sign Sensing.
    IEEE Radio and Wireless Symposium (RWS) (Las Vegas, 2023)
  • Michler F.:
    Optimizing Continuous-Wave Radars for Vital-Sign Detection: System Design Challenges and Limitations.
    International Microwave Symposium (IMS) 2023 (San Diego, 2023)
  • Michler F., Kolpak J., Scheiner B., Weigel R., Hagelauer A.:
    Characterization of a Flexible Polymer-Based Substrate Material for RF Applications.
    IEEE Radio and Wireless Symposium (RWS) (Las Vegas, 2023). DOI: 10.1109/RWS55624.2023.10046309
  • Shanin N., Hagelauer A., Cottatellucci L., Schober R.:
    Optimal Energy Signal Design for Multi-user MISO WPCNs with Non-linear Energy Harvesting Circuits.
    IEEE Transactions on Communications (2023), S. 1-1. ISSN: 0090-6778. DOI: 10.1109/TCOMM.2023.3257379
  • Shanin N., Garkisch M., Hagelauer A., Schober R., Cottatellucci L.:
    Optimal Resource Allocation and Beamforming for Two-User MISO WPCNs for a Non-linear Circuit-Based EH Model.
    Proceedings of IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP) (Singapore, 2022). DOI: 10.1109/TCOMM.2021.3134690
